Mating Cycle：≥2,000 Cycles |
Voltage Rating：600V |
Operating Temperature：-40°C to 105°C |
|
Pullout Force：<100N |
Current Rating：50A |
IP Rating：IP67 Mated |
|
Wire Processing：Solder |
Withstand Voltage：2,500V AC |
Salt Spray：5% Nacl, 48H |
|
Wire Gauge：9AWG/Max |
Insulation Resistance：>100MΩ |
Flammability Rating：UL94V-0 |
產品中心

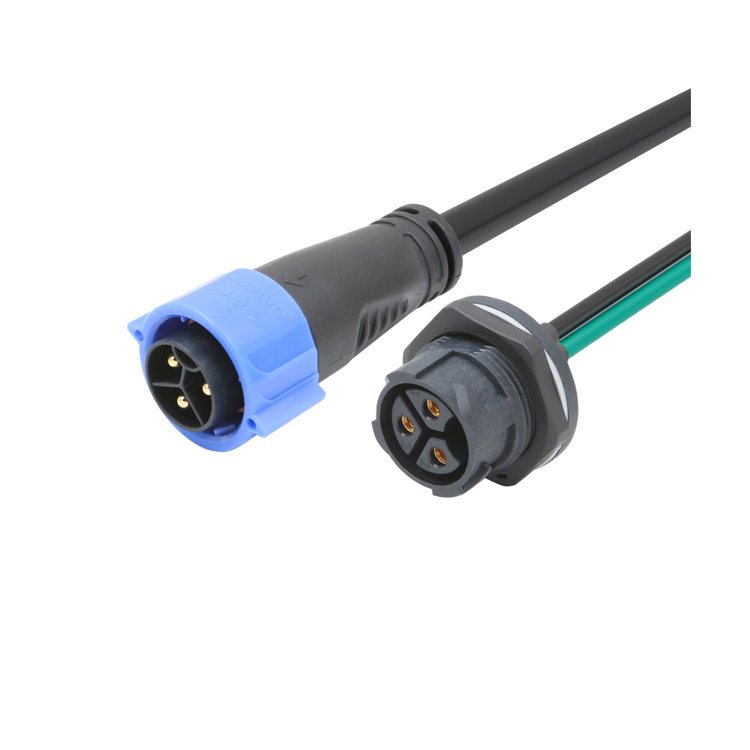

Large 3 Pin (50A)
應用範（fàn）圍：大電流充電
Advantages
• Four key push lock mechanism
• Audible click when lock engaged
• One-piece plug injection molding
• Partition wall between the terminals for voltage applications
• RoHS and REACH compliant
• UL2238
• Four key push lock mechanism
• Audible click when lock engaged
• One-piece plug injection molding
• Partition wall between the terminals for voltage applications
• RoHS and REACH compliant
• UL2238
